Industrial Cables

Draka Cableteq offers a diverse product selection to the defense, rail, transit, industrial, automotive and reservoir management markets. Draka is an industry leader in providing unique wire and cable solutions for unique applications. They offer an impressive portfolio of over 25,000 wire and cable configurations, plus an infinite number of highly engineered cables they can create to meet any specification, manufacturing multiconductor power and control cables for severe flexing demands of industrial robotics, cranes, automation, mining and construction.

• End-to-end solutions - design, manufacture, test and install
• Global reach with local expertise
• Certified Test Laboratory for faster product approval
• World-class industry expertise

AUTOFLEX CFP Trans-Gun Welding Cables
Continuous flex Robotic Trans-gun power cable/ 90°C/Thermoset Jacket/ UL, TC, ER, CSA FT4, UL & CSA Portable Power/ 2000V

AUTO-FLEX™ 360 WELDING Highly Flexible Single Conductor Trans-Gun Welding Cables
Highly flexible single conductor, 90° C 4 to 4/0 AWG thermoset CPE jacket / 600V

AUTOFLEX TC Tray Rated Power Supply Cables
Flexible Tray Rated power supply cable/ Thermoset Jacket/UL, TC, ER CSA FT4, 2000V

AUTOFLEX TCP PVC Tray Rated Power Supply/Drop Cable

Application

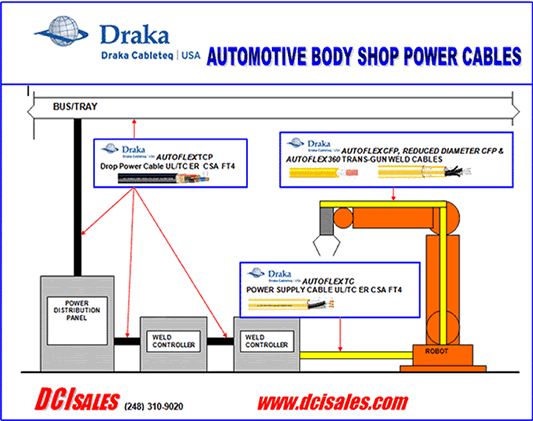

Power drop cables are used in automotive body shops as a feed from the bus to the weld timer/controller and from weld controller to weld controller.

SPEC: Multi-conductor, 600 volt, UL Type Tray Cable / CSA AWM with flexible strand copper, polyvinyl chloride (PVC) insulated and nylon jacketed circuit and grounding conductors, with a special formulated overall polyvinyl chloride (PVC) jacket. The cable is suitable for use in cable trays, aerial installations and as a power feed drop. TYPE TC-ER 600V FT4 (UL) E60544 CSA LL36970 (T) AWM I/II A/B 90C
600V FT4

Advantages:

TC-ER Listing - Draka Autoflex TCP is designed and constructed to meet the NEC 336.10(7) which allows TC-ER (tray cables-exposed run) cables permitted to extend from the cable tray to a piece of equipment without the use of a conduit. Virtually any length of cable can be used for circuit extension from cable tray to the equipment served.

TC-ER cables eliminate the requirement for Type MC cables by complying with the crush and impact resistance of Type MC cable.

Stranding- Draka Autoflex TCP uses a class (K) copper strand that provides superior flexibility over the class (B) building wire copper strand used in MC and Teck cables.

Easy to Work With – Compared to an armored cable, the flexible strand, insulation and jacketing compounds provide for a cable that is much easier to work with during installation.

Connectors-JAG vs. Cord Grips - Draka Autoflex TCP utilizes standard cable grips with or without mesh which are a major cost savings over Jacketed Armor Grips (JAG).

Installation costs - Draka Autoflex TCP doesn’t require any special installation and cutting tools that Armored Cables require. Most contractors find that the cable itself is physically easier to work with and can bend into tight fighting applications.

Reel Lengths - Draka Autoflex TCP cables have considerably smaller over all diameters compared to an armored cable product, allowing for longer continuous cable lengths on the reel, and reduced weight with ease of installation.

Cost of Shipping - Draka Autoflex TCP has a significantly reduced weight to comparable sized armored cables. This is a tremendous savings in shipment costs.

Flexible power tray cable
