| Quick Disconnect Trans-Gun Connectors |
| Company Profile:
VEAM/TEC, specializes in engineered solutions for the safe and reliable delvery of power (to 1,000 amperes) and signal (electronic and fiber optic). VEAM connectors and cable assemblies operate in the harshest and demanding environments possible; under railroad cars, on military assault vehicles, tanks, automotive stamping lines, and throughout nuclear power plants. When conventional connectors fail due to extreme conditions, harsh elements, high shock vibration, VEAM products continue to perform. VEAM/TEC studies each application and designs a custom product to meet specific performance requirements. |
 |
 |

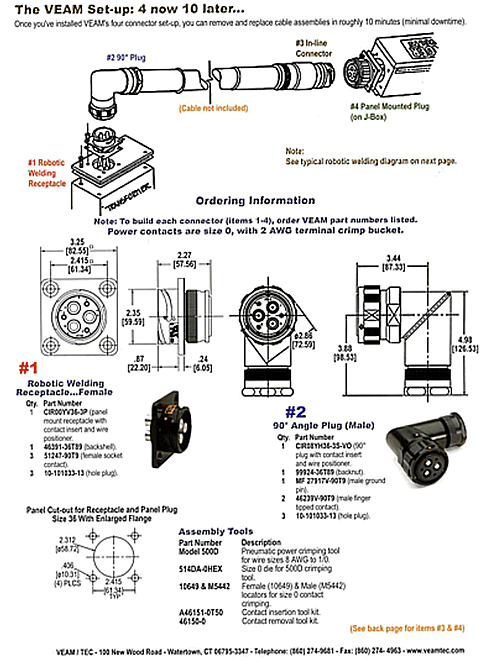

Quick Disconnect Trans-Gun Connectors
VEAM/TEC, specializes in engineered solutions for the safe and reliable delivery of power (to 1,000 amperes) and signal (electronic and fiber optic). VEAM connectors and cable assemblies operate in the harshest and demanding environments possible; under railroad cars, on military assault vehicles, tanks, automotive stamping lines, and throughout nuclear power plants. When conventional connectors fail due to extreme conditions, harsh elements, high shock vibration, VEAM products continue to perform. VEAM/TEC studies each application and designs a custom product to meet specific performance requirements. |
|
Product Features |
Customer Benefits |

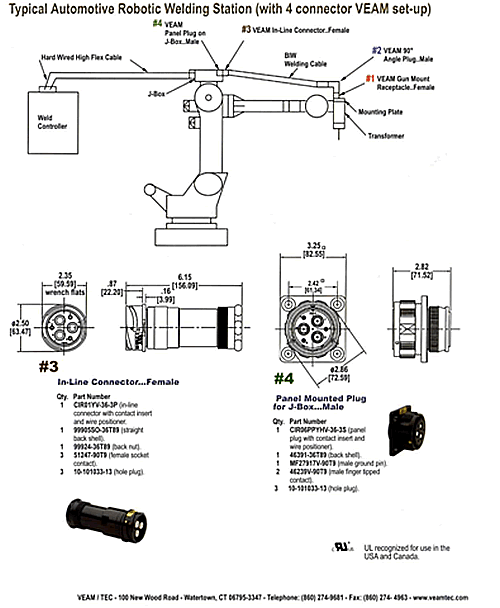

- Designed specifically for robotic welding
applications
|
- Engineered for high-performance in the harsh world of robotic welding
|
- Incorporates the rugged CIR Series,
quarter turn bayonet locking design
which is built to withstand a minimum
of 2,000 couplings
|
- Provides quick coupling and uncoupling for rapid removal & replacement (reduces downtime by 83% when compared to hardwired systems). Superior to threaded connectors that are prone to galling or cross threading.
|
- VEAM's coupling system provides
audible, visual and tactile indication
of full mating
|
- Peace of mind assurance that high-power connectors are properly mated - prevents disastrous disconnects and assembly line shutdowns.
|
- Heavy-duty copper power contacts
(1/0) with hard silver plating. Power
contacts are last to mate, first to break.
Male contacts are equipped with
fingertip insulators.
|
- Wear-resistant power contacts provide reliable power to 150 amps operating . Safety - connection (always grounded before energized). Fingertip insulators prevent accidental touching of power contact
|
- Environmentally sealed (water proof to 10 meters for 12 hours).
|
- Keeps out dust, contaminants and fluids that can lead to connector failure (ruptured water hoses won't compromise this connection).
|
Specification Data
- General Specifications: Shell - Aluminum alloy with black hard anodized finish (nonconductive)
- Insert - Polychloroprene (Neoprene), resilient
- Contacts - Copper alloy with hard silver plating
- Connector Ratings: Insert Arrangement - Service Rating: D, Operating Voltage DC: 1250 volts (at sea level) Operating Voltage AC: 900 volts (at sea level).
- Contact Rating*: Contact Size: 0, Rated & Test Current: 150 amps, Potential Voltage Drop -Millivolts Max: 53 mV
- Dielectric Strength: Service Rating: D, Minimum Flashover AC RMS: 3600 volts, Test Voltage AC RMS (Hi Pot): 2800 volts.
*Contact rating is for 0 AWG conductor.
UL recognized for use in the USA and Canada.
|
 |
 |

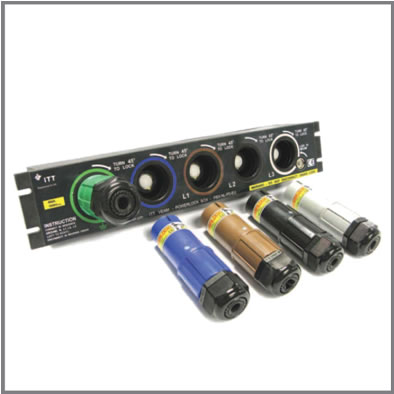

NRG Power Supply Safety Boxes for Hybrid and Electric Vehicles
NRG Power Supply Safety Boxes for Hybrid and Electric Vehicles |
 |
 |
|
|
 |
 |
|
| |
|
|
