Industrial Cables

Company Profile:

Draka Cableteq offers a diverse product selection to the defense, rail, transit, industrial, automotive and reservoir management markets. Draka is an industry leader in providing unique wire and cable solutions for unique applications. They offer an impressive portfolio of over 25,000 wire and cable configurations, plus an infinite number of highly engineered cables they can create to meet any specification, manufacturing multiconductor power and control cables for severe flexing demands of industrial robotics, cranes, automation, mining and construction.

  • End-to-end solutions – design, manufacture, test and install
  • Global reach with local expertise
  • Certified Test Laboratory for faster product approval
  • World-class industry expertise

Request a Quote

PRODUCT SPOTLIGHT

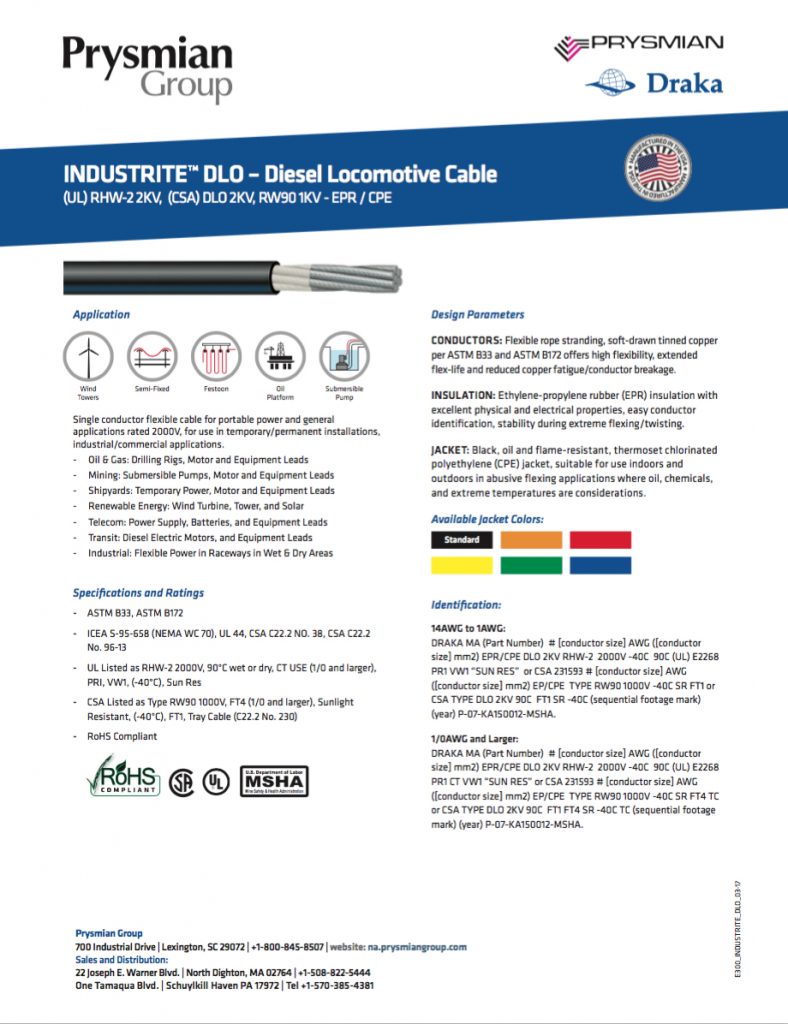

INDUSTRITE  DLO  Diesel Locomotive Cable

(UL)RHW-2KV, (CSA)DLO 2KV,RW90 1KV-EPR/CPE

Applications:

INDUS TRITE DLO is a single conductor flexible cable for portable power and general applications rated at 2000V, for use in temporary/permanent installations, industrial/ commercial applications.

  • –  Oil & Gas: Drilling Rigs
  • –  Mining
  • –  Shipyards
  • –  Renewable Energy
  • –  Telecom
  • –  Transit
  • –  Industrial



















































































 AUTOMOTIVE and AUTOMATION CABLES

automotive







robotics-and-automation

Slide2


AUTOFLEX CFP Trans-Gun Welding Cables
Continuous flex Robotic Trans-gun power cable/ 90°C/Thermoset Jacket/ UL, TC, ER, CSA FT4, UL & CSA Portable Power/ 2000V

Welding Cable

Applications

AUTO-FLEX® CFP Cable is designed and manufactured for use in automated welding applications where continuous flexing, torsional stresses and high heat and flame resistance are inherent to the operating environment.

In addition to applications in automated welding, AUTO-FLEX is also approved for installation when tray cable and open wiring listings are required.

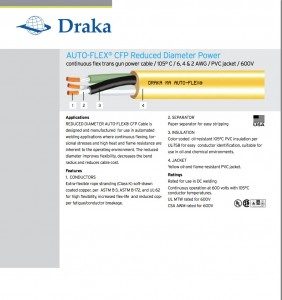

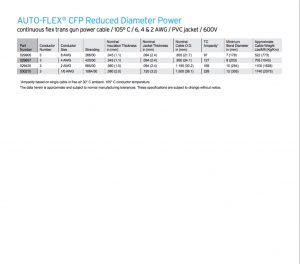

AUTOFLEX CFP REDUCED DIAMETER Trans-Gun Welding Cables
Continuous high flex Robotic Trans-gun power cable, PVC Jacket/UL & CSA AWM/ 600V

Welding Cable

Applications

AUTO-FLEX® CFP Reduced Diameter Cable is designed and manufactured for use in automated welding applications where continuous flexing, torsional stresses and high heat and flame resistance are inherent to the operating environment. The reduced diameter improves flexibility, decreases the bend radius and reduces cable cost.

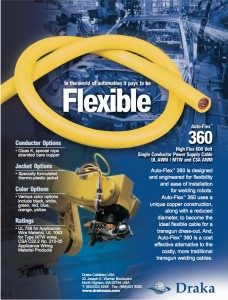

AUTO-FLEX™ 360 WELDING Highly Flexible Single Conductor Trans-Gun Welding Cables
Highly flexible single conductor, 90° C 4 to 4/0 AWG thermoset CPE jacket / 600V

Welding Cable

Applications

AUTO-FLEX 360 cables are specially designed for installation on welding robots with 360° articulation. They utilize a unique copper conductor stranding and a slim, reduced diameter to exceed even the most ex- treme bend radius in a transgun welding dress-out. AUTO-FLEX 360 installs easily and offers a cost-saving alternative to traditional transgun welding cables.

draka 360 web























AUTOFLEX TC Tray Rated Power Supply Cables
Flexible Tray Rated power supply cable/ Thermoset Jacket/UL, TC, ER CSA FT4, 2000V

Welding Cable

Applications

AUTO-FLEX® TC tray rated power supply cable is designed and manufactured for use as a power supply cable from a welding timer or controller to the base of a robot in a resist- ance welding application. The cable provides a exible tray rated solution that enhances the ease of installation when compared to standard tray cable. This cable can be used in many applications where exibility is required and is suitable for use in exposed runs in accordance with the NEC.

Additional Product Information

AUTOFLEX TC Black & Numbered Tray Rated Power Supply Cables
Flexible Tray Rated power supply cable with black & numbered conductors with a green +yellow stripe ground/ Thermoset Jacket/UL, TC, ER CSA FT4, 2000V

Applications

AUTO-FLEX® TC tray rated power supply cable is designed and manufactured for use as a power supply cable from a welding timer or controller to the base of a robot in a resist- ance welding application. The cable provides a exible tray rated solution that enhances the ease of installation when compared to standard tray cable. This cable can be used in many applications where exibility is required and is suitable for use in exposed runs in accordance with the NEC.

 Autoflec TC Black





Additional Product Information





AUTOFLEX TCP PVC Tray Rated Power Supply/Drop Cable

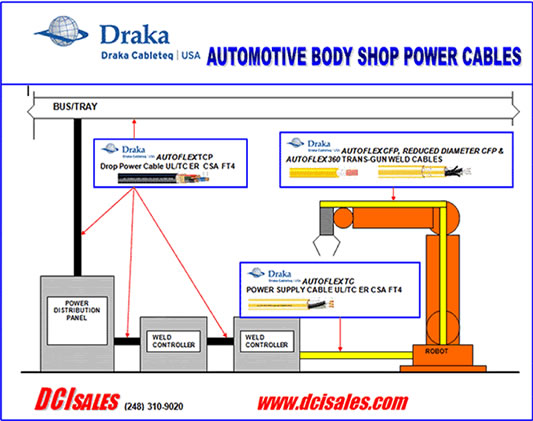

Power drop cables are used in automotive body shops as a feed from the bus to the weld timer/controller and from weld controller to weld controller.

Control Cable







Additional Product Information
Application

Autoflex Power Supply / Drop CableSPEC: Multi-conductor, 600 volt, UL Type Tray Cable / CSA AWM with flexible strand copper, polyvinyl chloride (PVC) insulated and nylon jacketed circuit and grounding conductors, with a special formulated overall polyvinyl chloride (PVC) jacket. The cable is suitable for use in cable trays, aerial installations and as a power feed drop. TYPE TC-ER 600V FT4 (UL) E60544 CSA LL36970 (T) AWM I/II A/B 90c 600V FT4



Advantages:

TC-ER Listing – Draka Autoflex TCP is designed and constructed to meet the NEC 336.10(7) which allows TC-ER (tray cables-exposed run) cables permitted to extend from the cable tray to a piece of equipment without the use of a conduit. Virtually any length of cable can be used for circuit extension from cable tray to the equipment served.

TC-ER cables eliminate the requirement for Type MC cables by complying with the crush and impact resistance of Type MC cable.

Stranding– Draka Autoflex TCP uses a class (K) copper strand that provides superior flexibility over the class (B) building wire copper strand used in MC and Teck cables.

Easy to Work With – Compared to an armored cable, the flexible strand, insulation and jacketing compounds provide for a cable that is much easier to work with during installation.

Connectors-JAG vs. Cord Grips – Draka Autoflex TCP utilizes standard cable grips with or without mesh which are a major cost savings over Jacketed Armor Grips (JAG).

Installation costs – Draka Autoflex TCP doesn’t require any special installation and cutting tools that Armored Cables require. Most contractors find that the cable itself is physically easier to work with and can bend into tight fighting applications.

Reel Lengths – Draka Autoflex TCP cables have considerably smaller over all diameters compared to an armored cable product, allowing for longer continuous cable lengths on the reel, and reduced weight with ease of installation.

Cost of Shipping – Draka Autoflex TCP has a significantly reduced weight to comparable sized armored cables. This is a tremendous savings in shipment costs.



AUTOFLEX CF Heavy Duty Flexible Control Cable

Continuous flex control cable

Control Cable

Applications

AUTO-FLEX® CF continuous flexing control cable is designed and manufactured with reduced diameters for use in continuous flexing and high speed automated applications where smaller bend radius, long flex life, resistance to tension, flame, abrasion, and temperature are considerations. Applications include cable carriers (C-Track), festoon systems, and cable trays for auto- mated robotic feeds.

/ UL TC ER, CSA FT4 / 600V

Additional Product Information

ALL-TEMP INDUSTRITE Flexible Power Cable

Festoon and Reeling Rated/ Type W Power Cable/ 105°C TO -40°C #8 AWG to 1000KCMIL/ Thermoset Jacket /UL Type W/ CSA Type W FT1 & FT5/ 2000V/ UL Festooning/ RoHS Compliant.

Control Cable

Applications

ALL-TEMP INDUSTRITE® Power Cable is designed and manufactured for use in continuous flexing, twisting, and other abusive physical applications where flame, abrasion, chemicals, moisture, impact, tearing, and temperature extremes are considerations. Applications include portable power, spring and motor driven reels, festoon systems, power tracks, cable tenders, cranes and hoists. ALL-TEMP INDUSTRITE® cables are suitable for use indoors and outdoors on magnet cranes, barges, milling machines, mining equipment, and oil rigs, and are suitable for installations in water including aerator ponds.

Additional Product Information

ALLTEMP INDUSTRITE Flexible Control Cable
Type SOW Control cable/ 105°C To -55°C / 16,14,12 & 10 AWG / Thermoset Jacket / UL Type S0W CSA Type SOW FT1 / 600V

Control Cable

Applications

ALL-TEMP INDUSTRITE® Control Cable is designed and manufactured for use in continuous exing, twisting, and other abusive physical applications where ame, abrasion, chemicals, moisture, impact, tearing, and temperature extremes are considerations. Applications include portable control, spring and motor driven reels, festoon systems, power tracks, cable tenders, cranes and hoists. ALL-TEMP INDUSTRITE® Control Cables are suitable for use indoors and outdoors, and are suitable for installations in water including aerator ponds.

Additional Product Information

INDUSTRITE Welding Cable
Welding Cable / 90°C / 4 to 4/0 AWG / Thermoset CPE Jacket / UL Listed 600V CSA certified Arc Welding Cable or Portable Power/ 600V

control-cable10







Additional Product Information

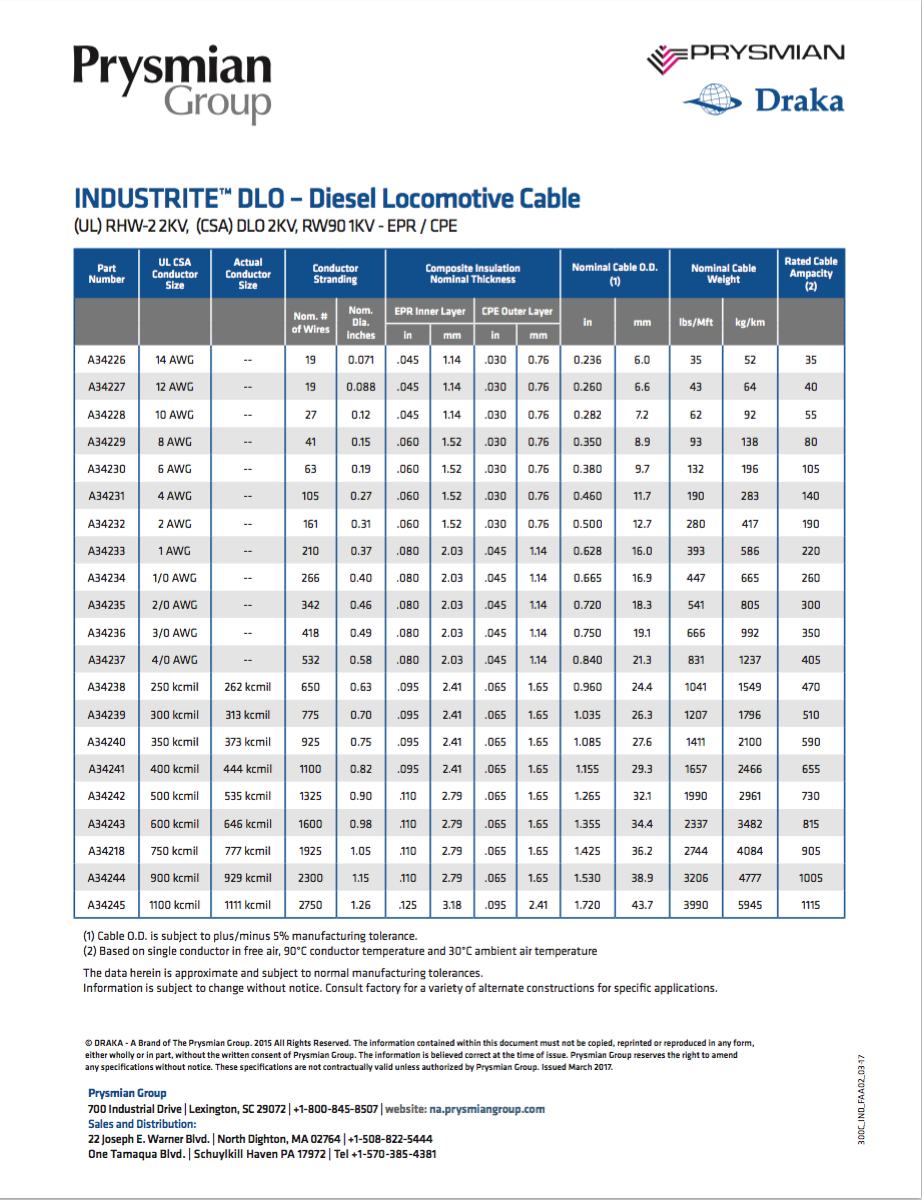

INDUSTRITE DLO-Diesel Locomotive Cable

(UL)RHW-22KV, (CSA)DLO2KV,RW901KV-EPR/CPE

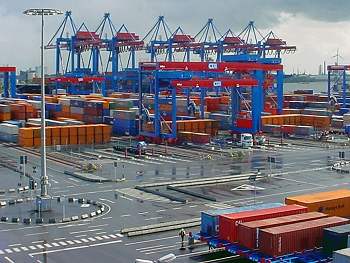

CRANE, MINING and FESTOON CABLES

hhla_stapelkraene

FLAT-FLEX Festooning Cable
Festooning Cable / 105°C to -40°C / 16 to 2/0 AWG / PVC Jacket /UL & CSA Listed / 600V

Applications

FLAT-FLEX® Festooning Cable is primarily designed for use with festoon systems for the conveyance of electrical power and control to cranes, hoists, or any other equipment which travels with a lateral traversing motion. FLAT-FLEX cables can also be used where space is at a premium, since it can be stacked; or where extreme flexing is a requirement, recommended bend radius of three to five times cable diameter. FLAT-FLEX cables are suitable for either indoor or outdoor applica- tions operating at -40°C to 105°C. However, they are not recom- mended for severe flexing or impact at temperatures below -10°C. For severe flexing applications below -10°C, specify FLAT-FLEX® Neoprene Festoon Cables.

flat flex







Additional Product Information



ALL-TEMP INDUSTRITE Magnet Crane Cable
Type W Magnet Crane Cable/ 105°C To-50°C/ 8 to 2/0 AWG / Thermoset Jacket /UL Type W CSA TYPE W FT1 / 2000V

Control Cable

Additional Product Information

BOSTFLEX Pendant and Reel Control Cable

Pendant & Reel Control Cable / 90° C / 16 to 10AWG / Thermoset Jacket/ UL Type So CSA Type SO FT1/ 600V

Control Cable

Additional Product Information

BOSTCORD Extra Heavy Duty Portable Cord

Extra Heavy Duty Portable Cord / 90°C / 18,16,14, 12 & 10 AWG / Thermoset Jacket / UL SOOW CSA SOOW FT1 600V

Control Cable

Additional Product Information

BOSTGARD Soaking Pit Cable
Soaking Pit Cable / 200°C / 14 to 2/0 AWG / Stainless Steel Armor / 600V

Control Cable

Additional Product Information

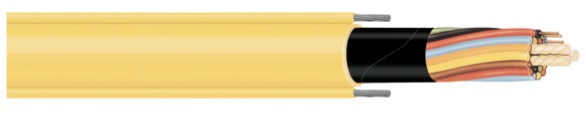

PENDFLEX-PVC Pendant Control Cable
Type MTW Pendant Control Cable / 90° / 16AWG/ PVC Jacket / UL Listed Type MTW 90°C CSA Certified AWM 90°C FT1 / 600V

pendflex







Additional Product Information

BOSTREEL POWER REELING CABLE
90°C to -40°C /6AWG-500KCMIL/ Thermoset Jacket / UL Listed MV-90 CSA Listed / 5,8 and 15KV

Control Cable

Additional Product Information

INDUSTRITE C-FLEX POWER AND CONTROL

For shipyard crane and festoon systems / 90° C to -40° C / 600V

Cflex







Additional Product Information
